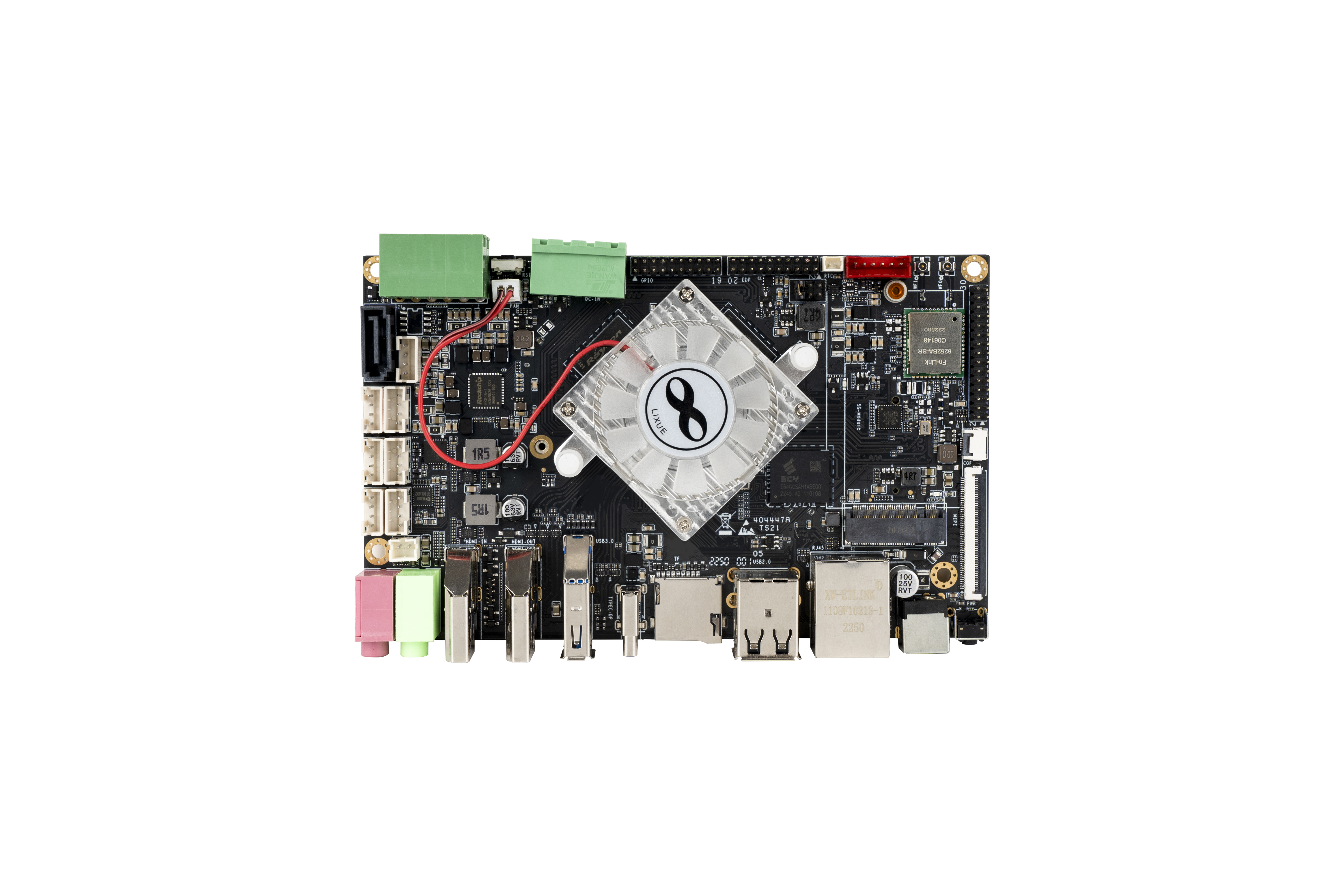

RK3588 SBC Custom Solutions for AI, Multimedia, and Industrial Applications
Home >> Solution >> SBC

PRODUCT DETAIL

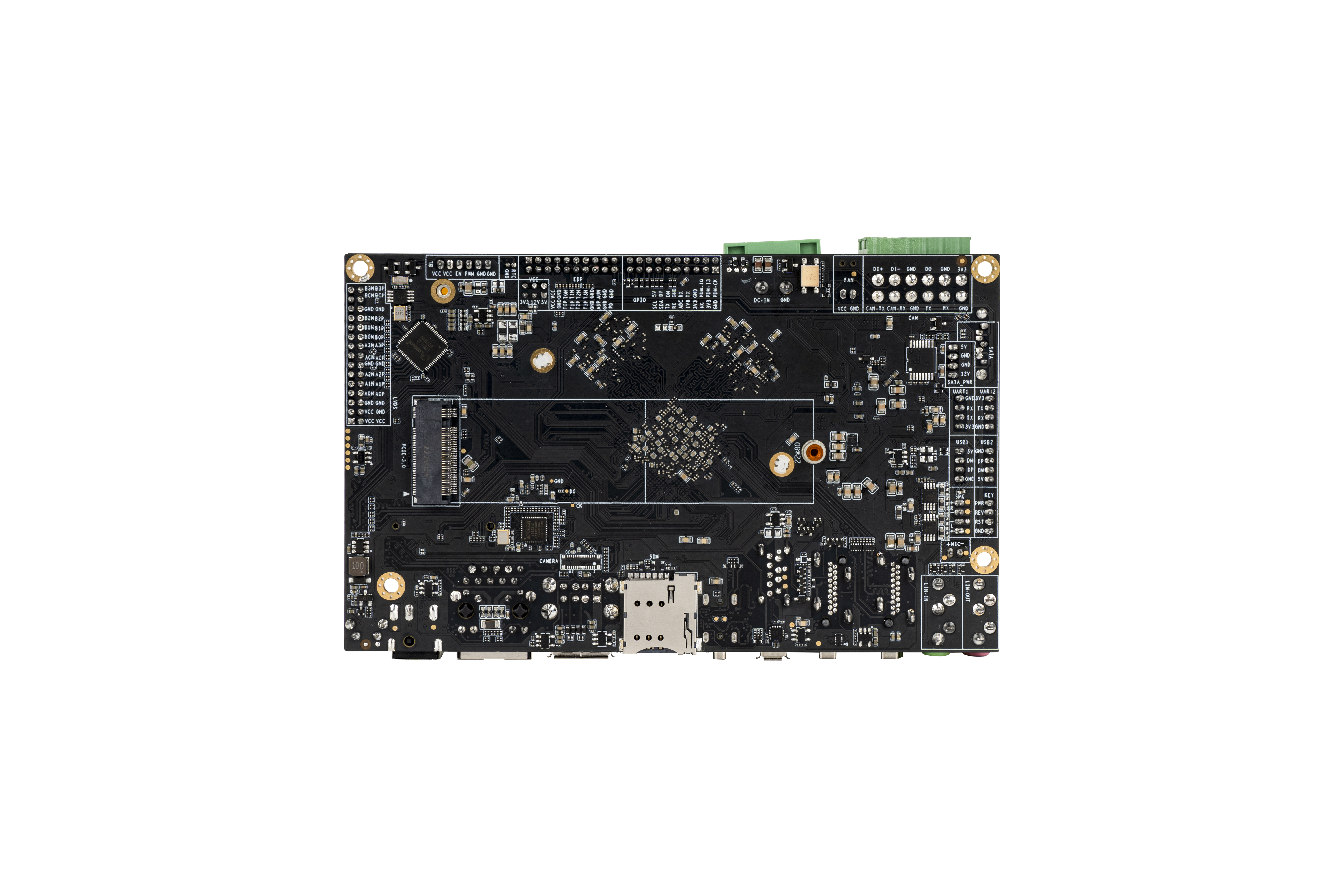

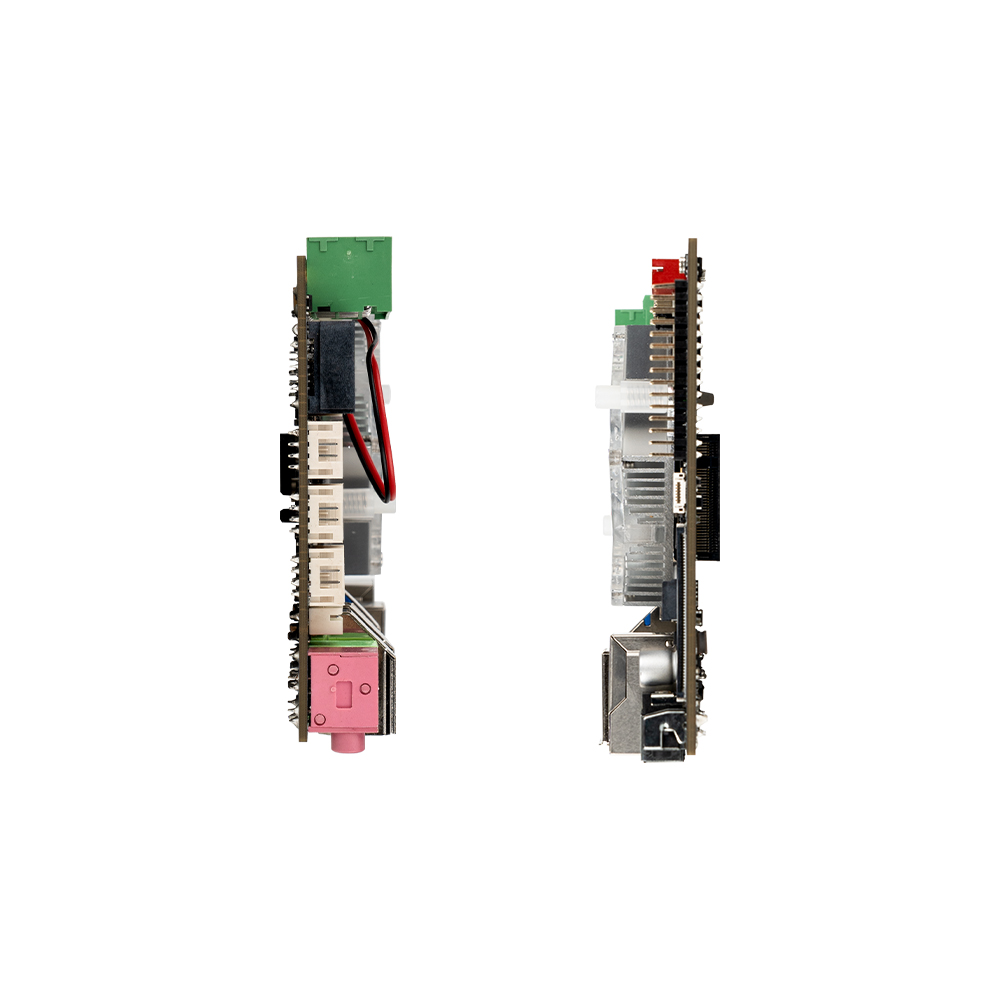

RK3588 V88
project-left
project-left
  • RK3588 SBC Custom Solutions for AI, Multimedia, and Industrial Applications LPDDR4 4GB/8GB/16GB/32GB
    SOC
    LPDDR4 4GB/8GB/16GB/32GB
  • RK3588 SBC Custom Solutions for AI, Multimedia, and Industrial Applications WIFI6 802.11a/b/g/n/ac/ax<br>2T2R

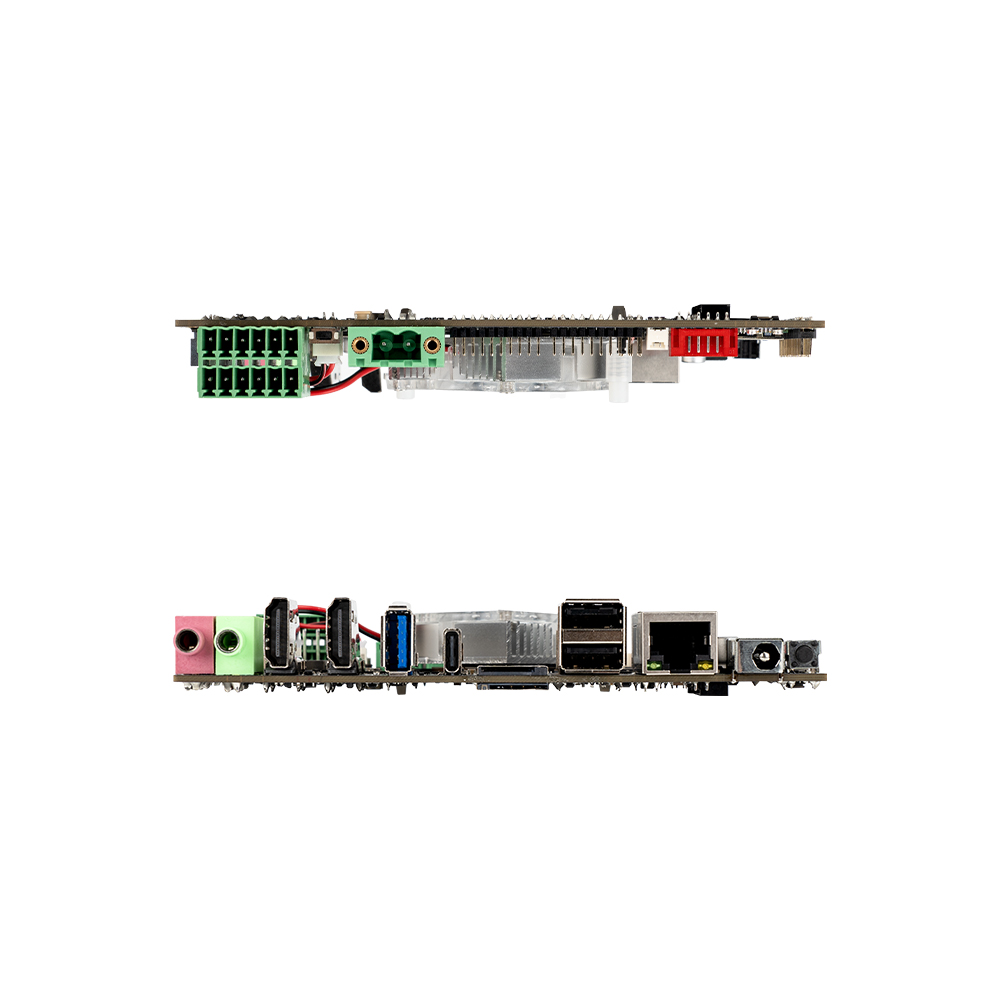

    Connectivity
    WIFI6 802.11a/b/g/n/ac/ax
    2T2R

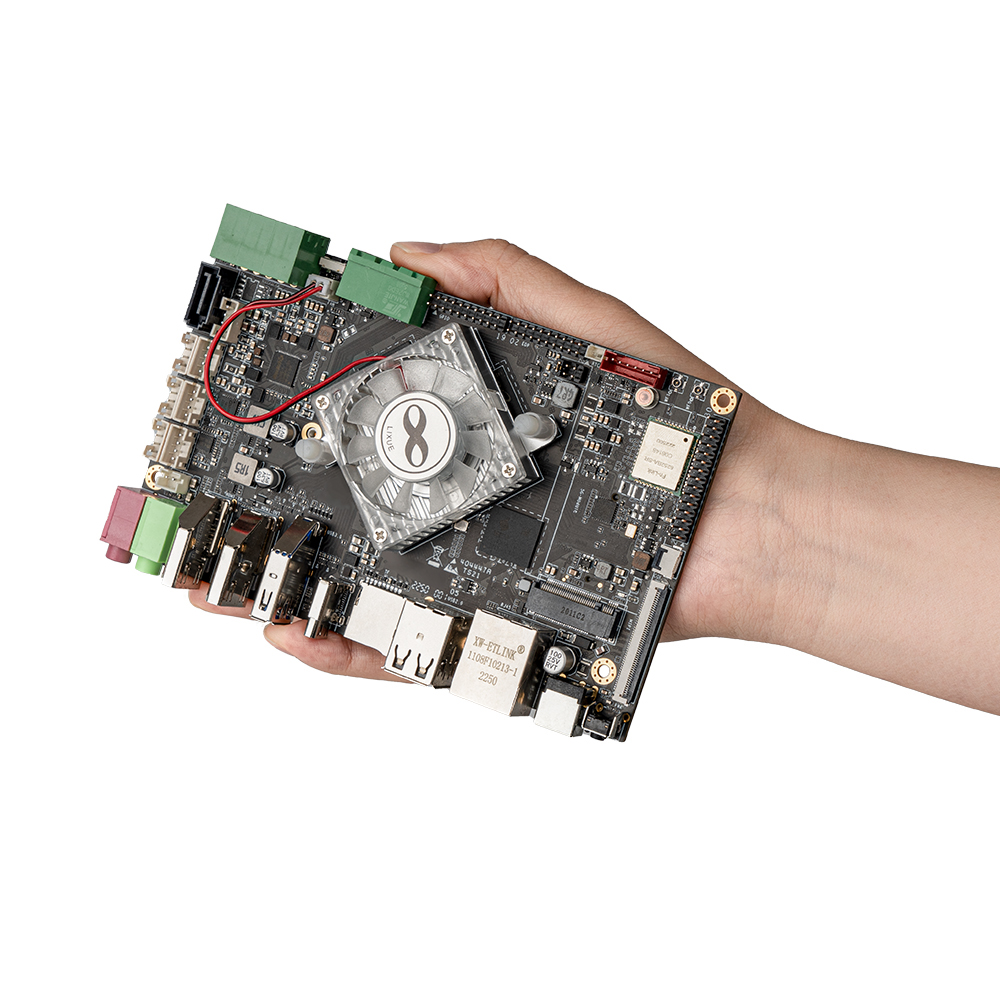

  • RK3588 SBC Custom Solutions for AI, Multimedia, and Industrial Applications 2 x UART / RS232 or 1 x UART / RS232 <br>1 x UART / RS232 / RS485 <br>Key Interface (PWR / ADC / Reset / GND)<br>1 x DI; 2 x DO; 1 x CAN; 1 x RS232; 1 x RS485 <br>4lane Mipi-CSI Camera Interface<br>UART / I2C / SPI / PCM / PWM
    Interface
    2 x UART / RS232 or 1 x UART / RS232
    1 x UART / RS232 / RS485
    Key Interface (PWR / ADC / Reset / GND)
    1 x DI; 2 x DO; 1 x CAN; 1 x RS232; 1 x RS485
    4lane Mipi-CSI Camera Interface
    UART / I2C / SPI / PCM / PWM

  • SPECIFICATION

OS Android 12/Android 13
SOC RK3588 4 x Cortex-A76 + 4 x Cortex-A55, 2.4GHz, 8nm 6.0TOPS NPU, Support INT4/INT8/INT16
RAM LPDDR4 4GB/8GB/16GB/32GB
ROM EMMC5.1 64G/128G
Media Video decoding: 8K@60fps H.265/VP9/AVS2
8K@30fps H.264 AVC/MVC
4K@60fps AV1
Display Standard HDMI out Port，HDMI2.1, up to 8K@60Hz
Standard HDMI in Port，HDMI 2.0 RX PHY, 4-lanes, up to 4K@60Hz eDP1.3, 4Lane, 4K@60Hz
Dual-LVDS Port, 1080P@60Hz 8-Lane MIPI-DSI, LCD interface Type C DP out, DP1.4 output
Ethernet RJ45 Gigabit Ethernet interface, supporting external POE module
Connectivity WIFI6 802.11a/b/g/n/ac/ax, 2T2R
USB USB Type C x 1 (OTG, DP output support) USB Type A 2.0 x 2
USB Type A 3.0 x 1
USB 2.0 x 2 4Pin-PH1.25
TF-Card Micro SD card,up to 128GB
Audio Line-out, 3.5mm
Jack Line-in
3.5mm Jack
Speaker, 2 x 3W, 4Pin-PH 1.25 Mic input, 2Pin-PH 1.25
Interface 2 x UART/RS232 or 1 x UART/RS232
1 x UART/RS232/RS485
Key Interface (PWR/ADC/Reset/GND)
1 x DI 2 x DO 1 x CAN 1 x RS232
1 x RS485 (2 x 6Pin Phoenix fixing)
4lane Mipi-CSI Camera InterfaceUART/I2C/SPI/PCM/PWM
Input Power 12V DC via DC5.5 connector
12V DC via 2Pin-5.08mm Flange
PCB Size: 85 x 138 x 1.6mm
Process: 8-layer Immersion Gold Hole: ∮3.2mm x 4
Environment Operating temperature -20°C ~ 60°C
