RK3566 SOM: Powering Intelligent Applications
Home >> Solution >> SOM

PRODUCT DETAIL

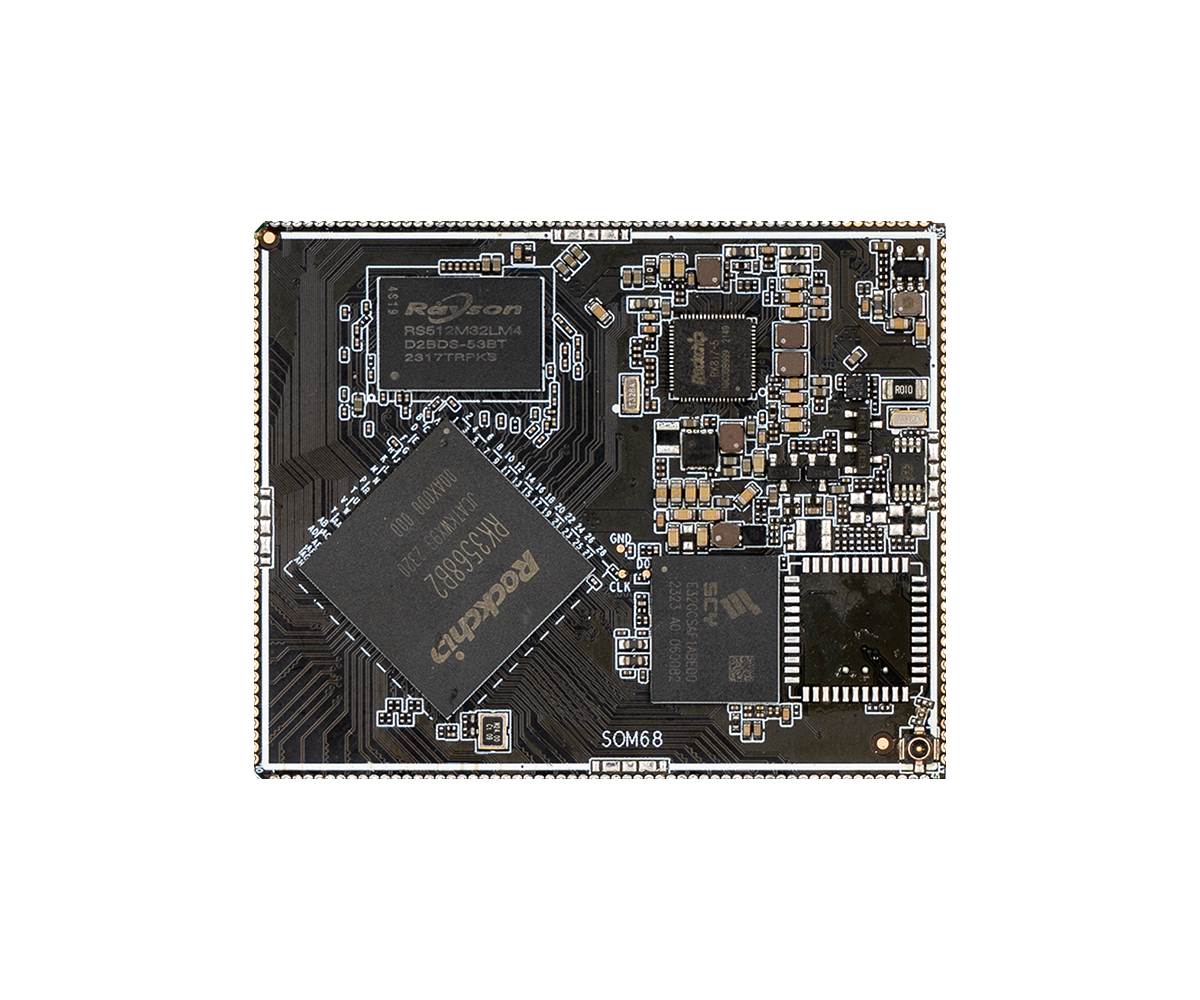

SOM68
project-left
project-left
  • RK3566 SOM: Powering Intelligent Applications LPDDR4 2G/3G/4G/6G/8G
    SOC
    LPDDR4 2G/3G/4G/6G/8G
  • RK3566 SOM: Powering Intelligent Applications WiFi 802.11b/g/n or 802.11a/b/g/n/ac <br>Bluetooth 4.2 or 5.0 <br>GMACx1(10/100/1000M)
    Connectivity
    WiFi 802.11b/g/n or 802.11a/b/g/n/ac
    Bluetooth 4.2 or 5.0
    GMACx1(10/100/1000M)
  • RK3566 SOM: Powering Intelligent Applications SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.
    Interface
    SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.

  • SPECIFICATION

OS Android/Linux
SOC RK3568, 4 x Cortex-A55, 2.0GHz, 22nm
GPU ARM G52 2EE, 1 TOPS NPU
RAM LPDDR4 2G/3G/4G/6G/8G
ROM EMMC5.1 32G/64G/128G
Media 4K 60fps H.265/H.264/VP9 decode
1080P 100fps H.265/H.264 codec
Display MIPI，2 x 4-Lane MIPI-DSI，2560 x 1600@60fps
EDP，4-lane EDP1.3，3000 x 2000@60fps
Dual-LVDS , 1920 x 1080@60fps
HDMI-out，HDMI2.0，1080p@60fps，upto 4K@60fps
4-lane/2x2-lane, Camera ISP, 8MP@30fps HDR
Ethernet 1000M Ethernet x 2（The carrier board）
Connectivity WiFi 802.11b/g/n or 802.11a/b/g/n/ac
Bluetooth 4.2 or 5.0
GMACx1(10/100/1000M)
USB USB3.0 HOST x 1
USB2.0 HOST x 3 (One port with OTG）
Micro SD Card Micro SD card, up to 128GB
Audio Speaker x 2
Headphone x 1
Microphone x 1
HDMI audio out
Interface SATA3.0/UART/SPI/PWM/I2C/ADC/PWR/RESET/3.3V etc.
Input Power Li-Battery Supply,
5V/12V Charger
PCB Size: 50 x 63 x 1.0mm
Process:6-layers HDI Immersion Gold
Package:LCC(210Pin，1.0mm)
Environment Operating temperature -20°C ~ 60°C
