RK3588 SOM: Pioneering Performance in Compact Design
RK3588 SOM: Pioneering Performance in Compact Design
Home >> Solutions >> SOM

RK3588 SOM: Pioneering Performance in Compact Design

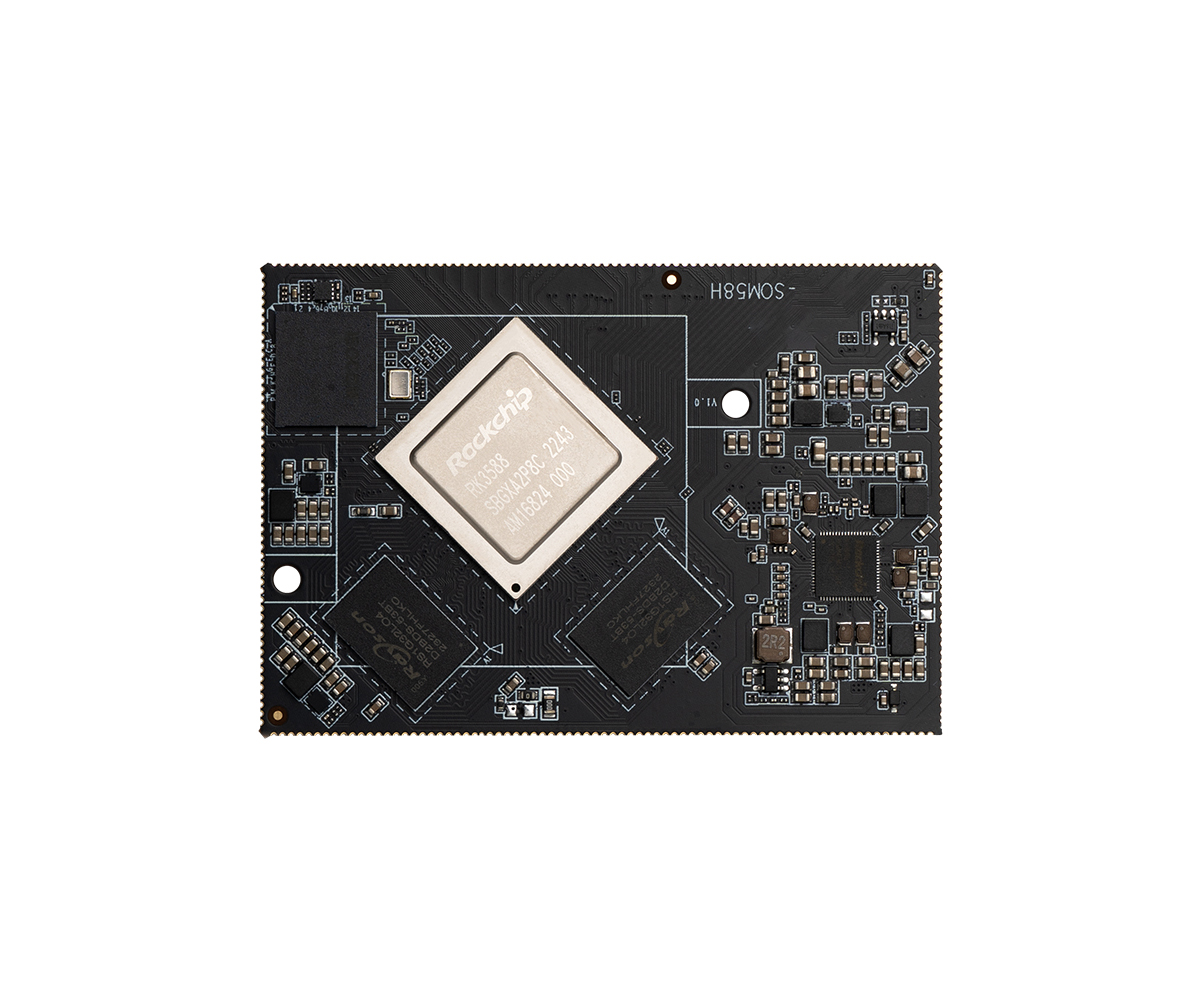

Model: SOM58H
RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
Inquiry Ask for A Demo
RK3588 SOM: Pioneering Performance in Compact Design

SOM58H

RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
SOM58H

PRODUCT DETAIL

SOM58H
  • RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm<br> GPU ARM Mali-G610 MP4 Quad-Core <br> OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS<br> 6.0TOPS NPU, Support INT4/INT8/INT16
    SOC
    RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
    GPU ARM Mali-G610 MP4 Quad-Core
    OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
    6.0TOPS NPU, Support INT4/INT8/INT16
  • Connectivity
    Connectivity
    Integrated PCIe3.0/GMAC/SDIO3.0/USB3.0,
    Expandable Multi-Gigabit Ethernet
    WiFi6/Bluetooth,
    5G/4G LTE
  • High-Speed Interfaces:<br> PCIe3.0 (2 x 2lanes,1×4lanes,4×1lanes)/3 x PCIE2.1(1 lanes)<br> SATA3.0 x 3<br> USB3.0 x 3/USB2.0 Host x 2, OTG<br> <br> Other Interfaces:<br> 9 x I2C/10 x UART/5 x SPI/7 x ADC/16 x PWM /1 x SDMMC/GPIO
    Interface
    High-Speed Interfaces:
    PCIe3.0 (2 x 2lanes,1×4lanes,4×1lanes)/3 x PCIE2.1(1 lanes)
    SATA3.0 x 3
    USB3.0 x 3/USB2.0 Host x 2, OTG

    Other Interfaces:
    9 x I2C/10 x UART/5 x SPI/7 x ADC/16 x PWM /1 x SDMMC/GPIO

Specification

  • OS
    Android/Linux
  • SOC
    RK3588, 4 x Cortex-A76 + 4 x Cortex-A55 2.4GHz, 8nm
    GPU ARM Mali-G610 MP4 Quad-Core
    OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
    6.0TOPS NPU, Support INT4/INT8/INT16
  • RAM
    LPDDR4 4GB/8GB/16GB/32GB
  • ROM
    EMMC5.1 64G/128G/256G
  • Media
    Decode:
    8K 60fps H.265/VP9/AVS2
    8K 30fps H.264 AVC/MVC
    4K 60fps AV1
    1080P 60fps MPEG-2/-1/VC-1/VP8

    Encoded:
    8K 30fps encoding,
    Support H.265/H.264 Up to 32 channels
    1080P 30fps decoding and 16 channels
    1080P 30fps encoding
  • Display
    2 x HDMI2.1 (8K@60fps or 4K@120fps, HDMI and eDP multiplexed)
    2 x MIPI-DSI (4K@60fps)
    2 x DP1.4 (8K@30fps, multiplexed with USB 3.0)
    1 x BT.1120 (1080P@60fps)

    1 x HDMI-IN (4K@60fps), supports HDCP 2.3
    1 x MIPI CSI (4 Lane) or 2 × MIPI CSI (2 Lane)
    2 x MIPI DC (4-channel DPHY v2.0 or 3-channel CPHY V1.1)
    1 x DVP camera interface (up to 150MHz input data)
    Supports multiple 8K video outputs and 4K video inputs, Up to seven screens of different displays
  • Ethernet
    1000M Ethernet x 2（The carrier board）
  • Connectivity
    Integrated PCIe3.0/GMAC/SDIO3.0/USB3.0,
    Expandable Multi-Gigabit Ethernet
    WiFi6/Bluetooth,
    5G/4G LTE
  • USB
    USB3.0 x 3/USB2.0 Host x 2, OTG
  • Micro SD Card
    Micro SD card,up to 128GB（The carrier board）
  • Audio
    Can be customized
  • Interface
    High-Speed Interfaces:
    PCIe3.0 (2 x 2lanes,1×4lanes,4×1lanes)/3 x PCIE2.1(1 lanes)
    SATA3.0 x 3
    USB3.0 x 3/USB2.0 Host x 2, OTG

    Other Interfaces:
    9 x I2C/10 x UART/5 x SPI/7 x ADC/16 x PWM /1 x SDMMC/GPIO
  • Input Power
    The carrier board can be customized

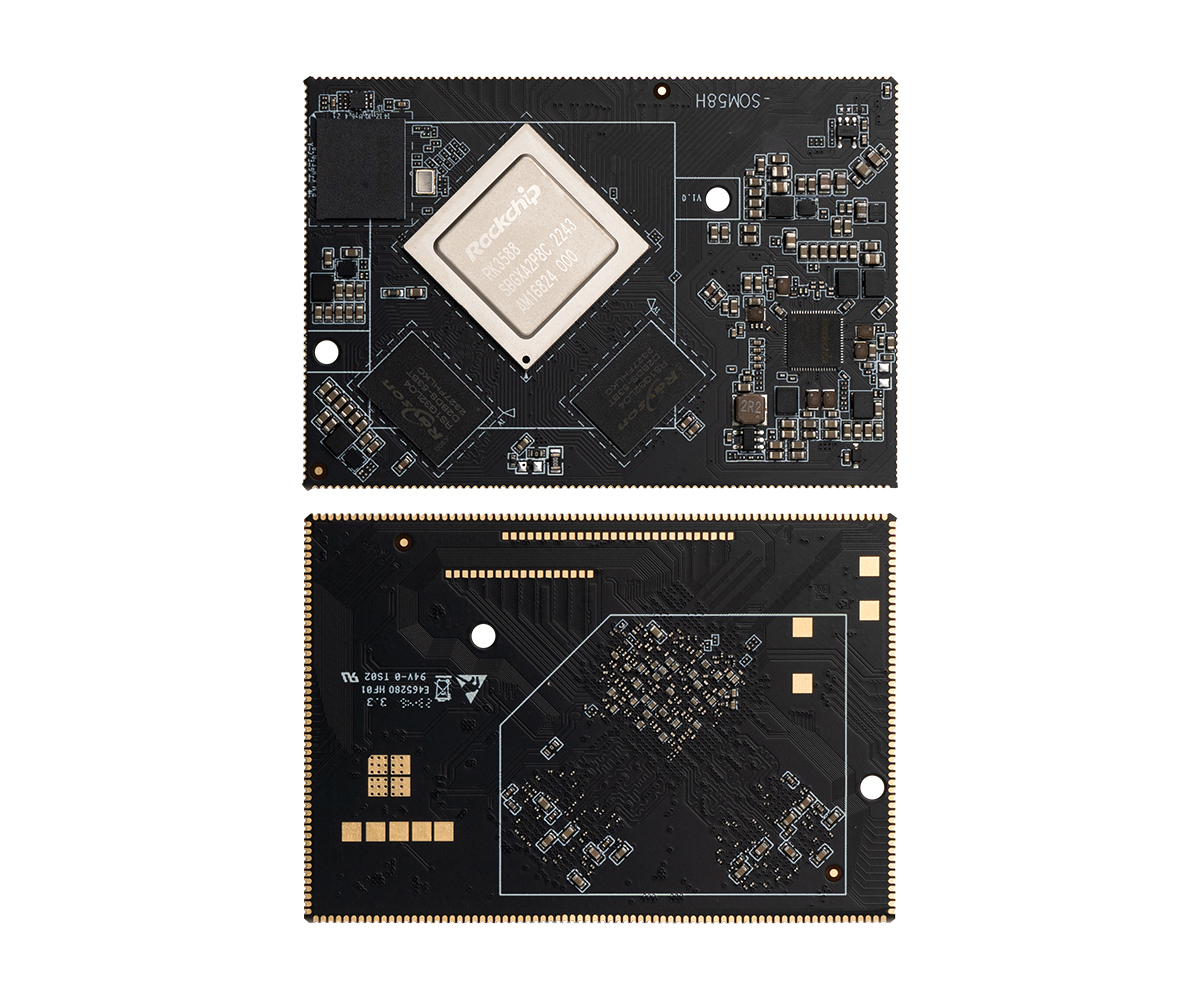

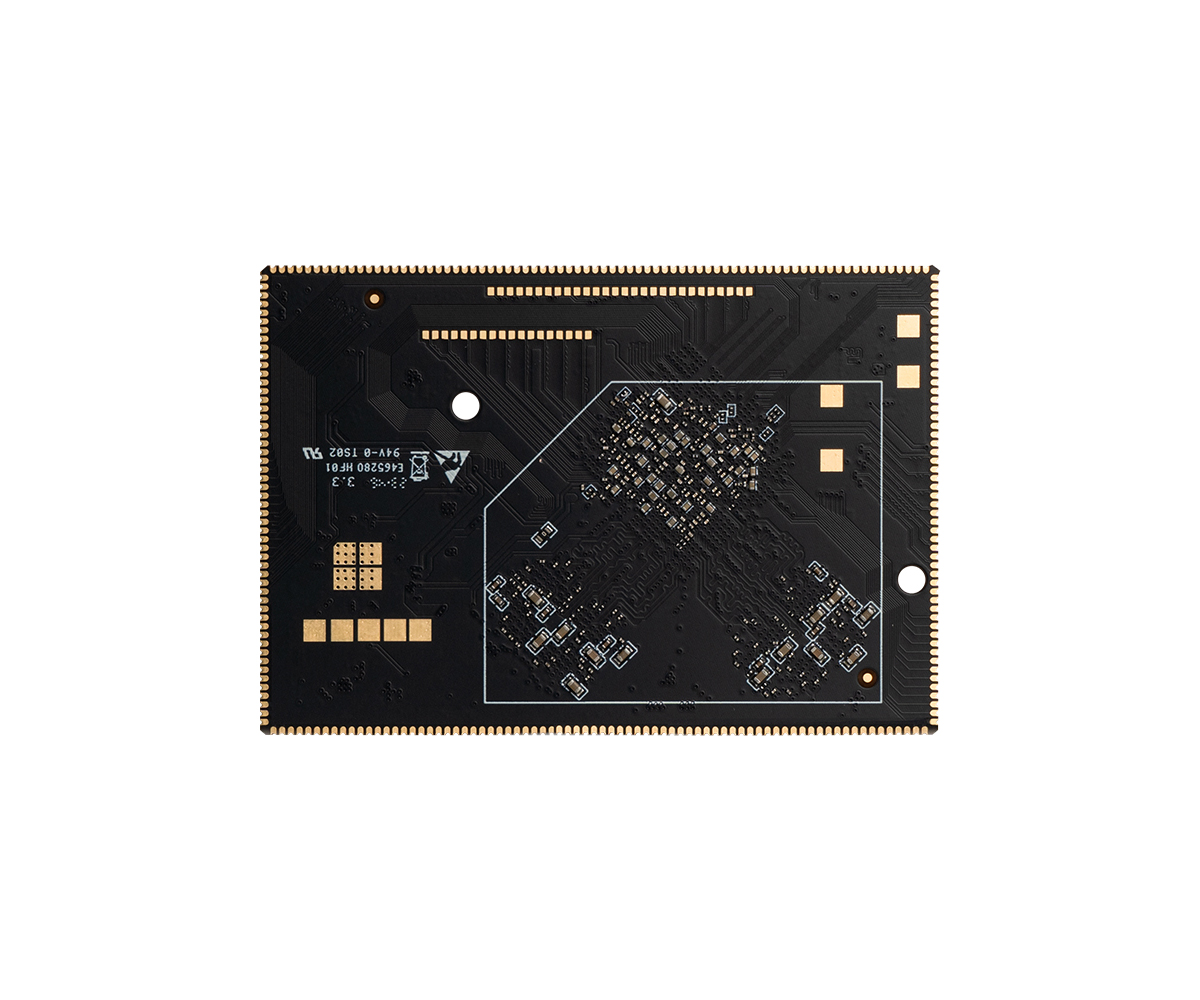

  • PCB
    Size: 54 x 78 x 1.2mm
    Process:8-layers HDI Immersion Gold
    Package:LCC+LGA（302Pin，1.0mm）
  • Environment
    Operating temperature -20°C ~ 60°C
