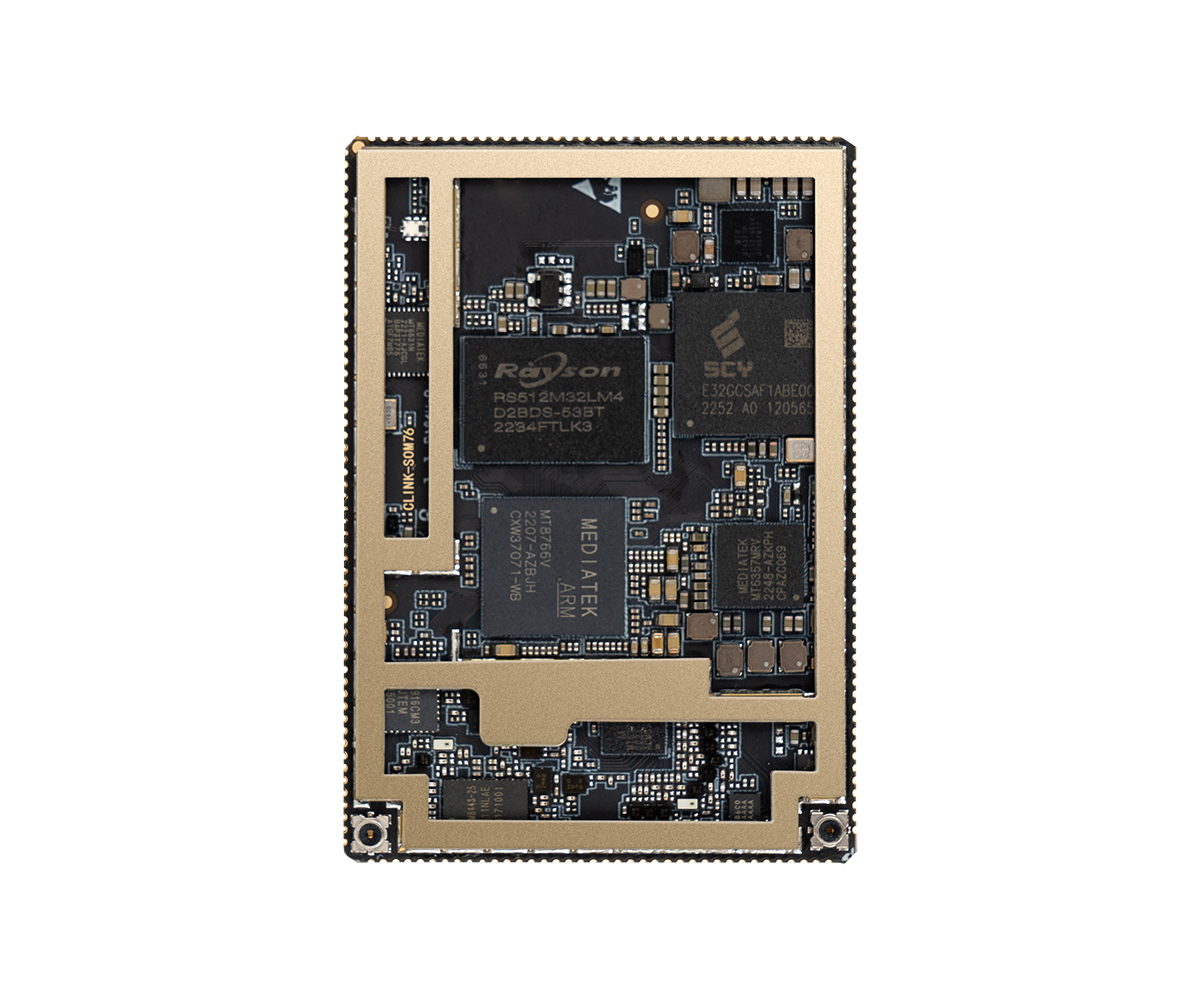

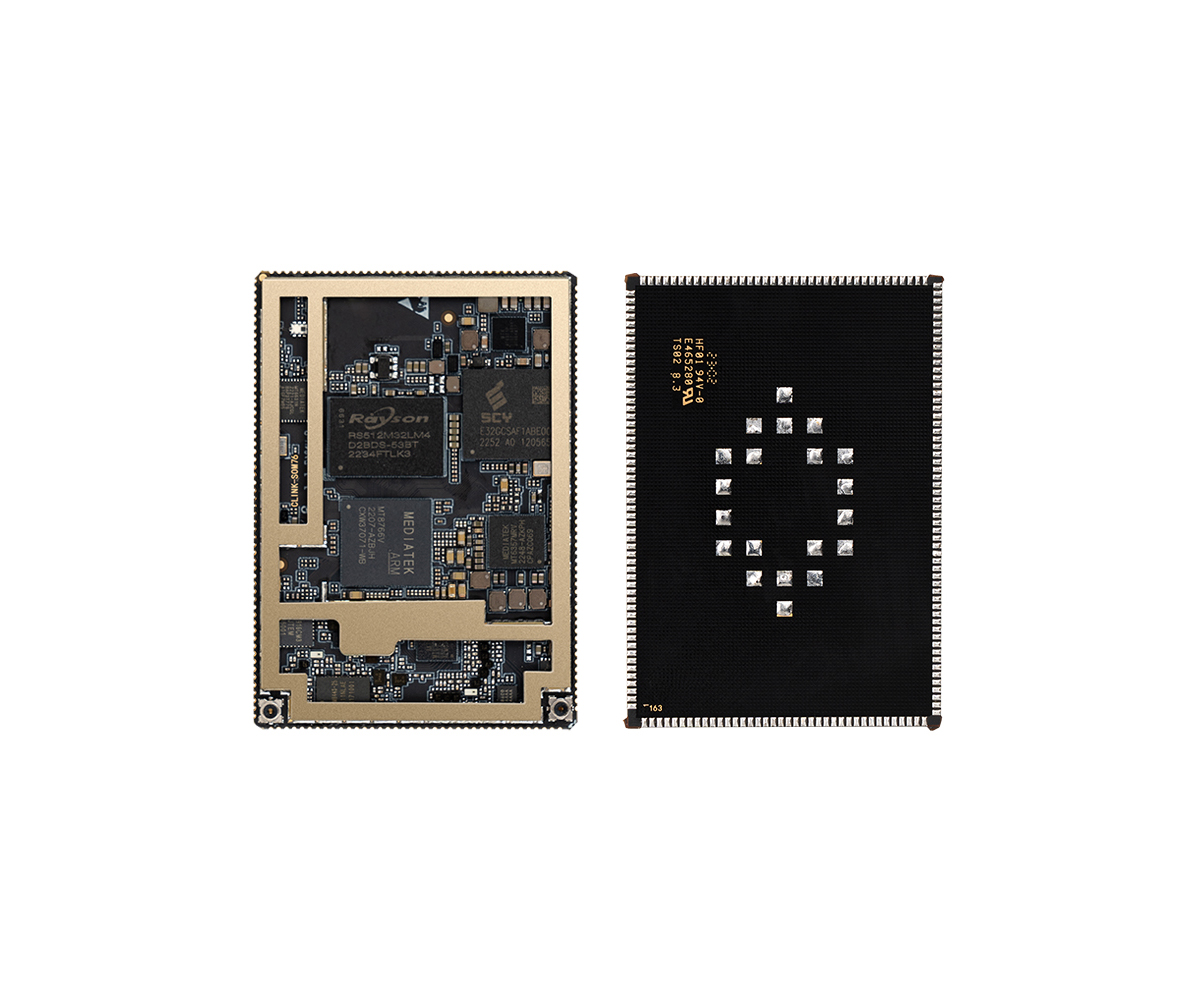

MT8768 SOM: Streamlining AI Deployment in IoT

Model: SOM76

MT8768, 4 x A53 2.0GHz + 4 x A53, 1.5GHz,12nm
GPU IMG GE8320@650MHz

Inquiry Ask for A Demo

SOM76

MT8768, 4 x A53 2.0GHz + 4 x A53, 1.5GHz,12nm
GPU IMG GE8320@650MHz

SOM76

OS

Android
SOC

MT8766, 4 x A53 2.0GHz.12nm
GPU IMG GE8300@660MHz
RAM

LPDDR4 4G/6G
ROM

EMMC5.1 64G/128G
Media

Decode:1080P 30fps H.264/H.265/MP4
Encoded:1080P 30fps H.264
Display

MIPI，4-Lane MIPI-DSI 1920 x 1200@60fps
LTE

TDD/FDD，LTE Cat7，L+L DSDS
WCDMA

WCDMA
GSM

GSM
Connectivity

WIFI 802.11a/b/g/n/ac
Bluetooth 5.0
GPS+Glonass+Beidou+Galileo
FM Receiver
USB

USB2.0 OTG
Input Power

Li-Battery Supply,5V/12V Charger
PCB

Size: 41.5 x 57.5 x 1.0mm
Process:10-layers HDI-2 Immersion

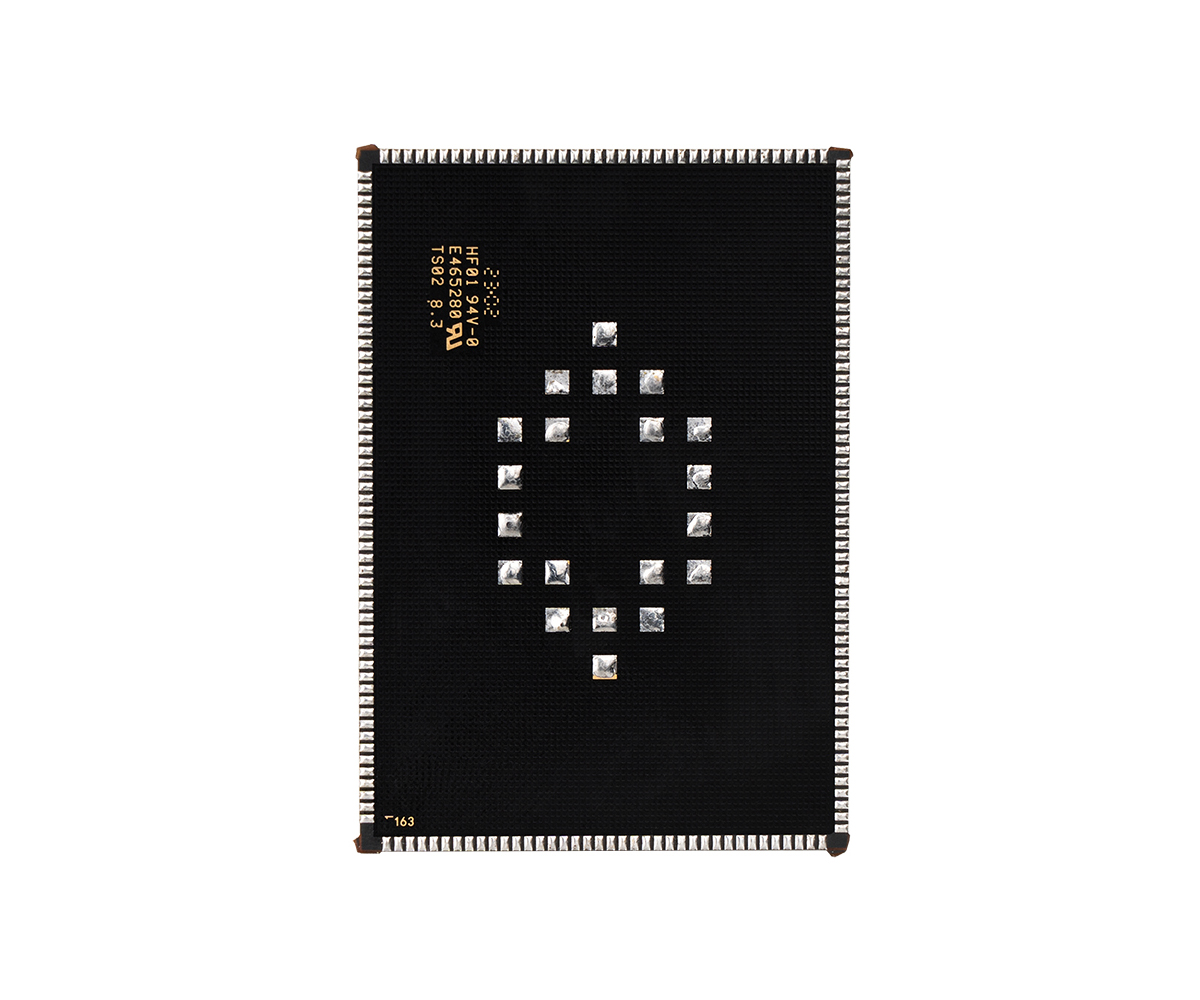

Gold Package:LCC（163Pin，1.0mm）
Environment

Operating temperature -20°C ~ 60°C

Hardware

What are the core processing specs of the MT8768 SOM (SOM76)?

The SOM76 is powered by the MediaTek MT8768 Octa-Core SoC (4×A53 2.0GHz + 4×A53 1.5GHz) with an IMG GE8320 GPU. Built on a 12nm process, it offers high energy efficiency and supports up to 6GB LPDDR4 RAM and 128GB eMMC, providing a stable foundation for complex Android-based IoT applications.

Core Functionality

How does this SOM handle global connectivity and multimedia?

It is an "all-in-one" solution featuring Global 4G LTE (Cat-7), Dual-band Wi-Fi 5, Bluetooth 5.0, and Multi-GNSS (GPS/Glonass/Beidou). It supports FHD+ (1920x1200) displays and 1080p video encoding/decoding, making it ideal for Smart Retail Displays, Mobile POS, and Handheld Data Terminals.

Customization & Integration

Can Pretech design a custom carrier board for this MT8768 module?

Absolutely. Pretech’s core strength is Full ODM Service. While the SOM76 provides the core compute/modem, we can design and manufacture a Custom Carrier Board tailored to your specific I/O needs (e.g., specialized sensors, multiple USB ports, LAN, or proprietary medical interfaces) to speed up your time-to-market.

Deployment

Is the SOM76 module reliable for industrial-grade deployments?

Yes. The module features a high-density 10-layer HDI-2 Immersion Gold PCB and an LCC 163-pin package for superior signal integrity and thermal performance. It supports an industrial operating temperature range of -20°C to 60°C, ensuring reliability in factory automation and outdoor IoT gateways across North America and Europe.

Software & Performance

What software support and security does Pretech provide for this platform?

We provide a fully optimized Android BSP (Board Support Package). Our ODM team handles firmware customization, including Kiosk Mode, secure boot, and API integration for hardware peripherals. With a 7-year product lifecycle support, we ensure your long-term projects remain stable and maintainable.
