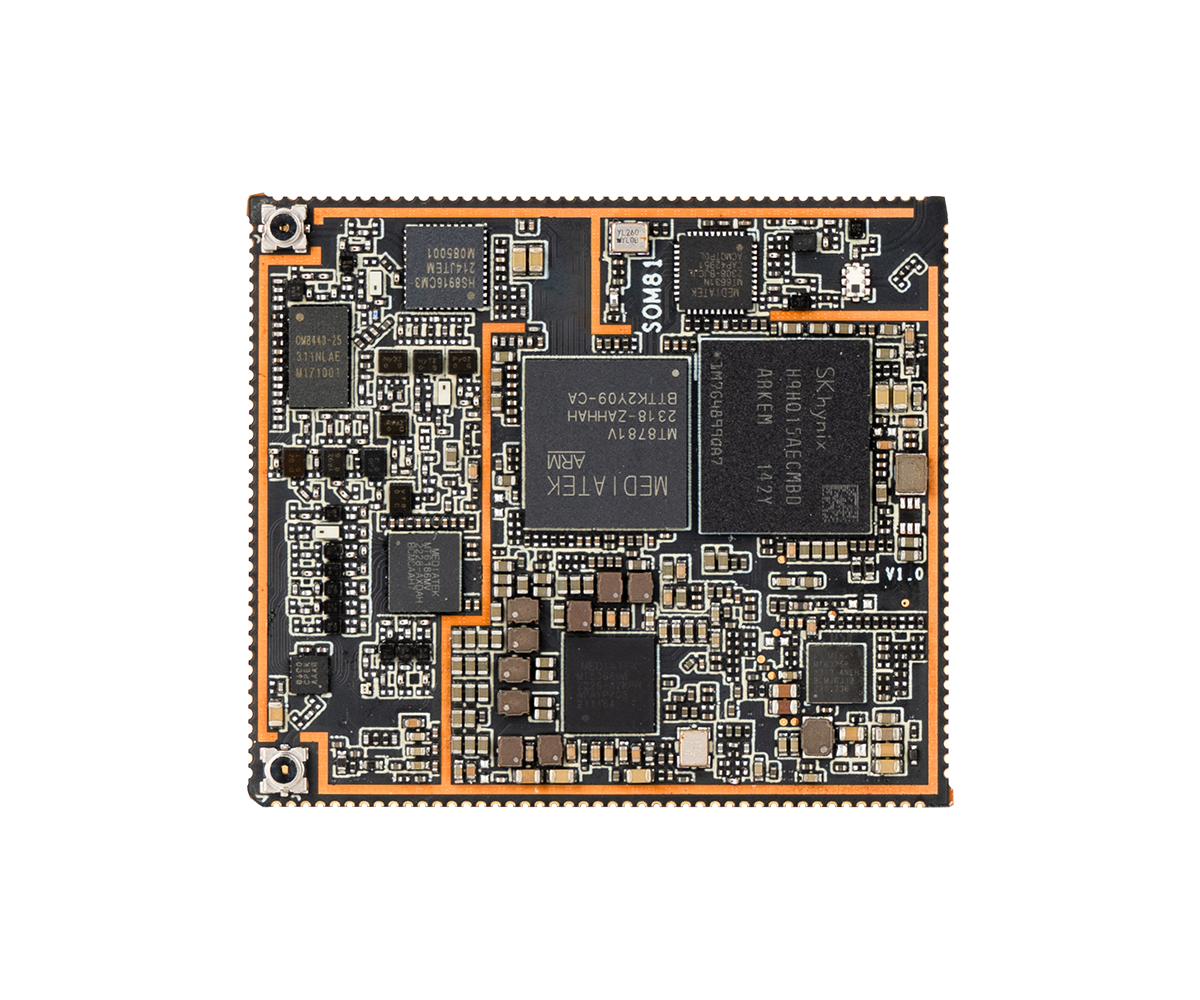

MT8781 SOM: Pioneering 6nm Technology for Future-Ready Devices
Home >> Solution >> SOM

PRODUCT DETAIL

SOM81
project-left
project-left
  • MT8781 SOM: Pioneering 6nm Technology for Future-Ready Devices UMCP 6G+128G
    SOC
    UMCP 6G+128G
  • MT8781 SOM: Pioneering 6nm Technology for Future-Ready Devices WIFI 802.11a/b/g/n/ac<br>Bluetooth 5.2<br>GPS+Glonass+Beidou+Galileo<br>FM Receiver
    Connectivity
    WIFI 802.11a/b/g/n/ac
    Bluetooth 5.2
    GPS+Glonass+Beidou+Galileo
    FM Receiver
  • MT8781 SOM: Pioneering 6nm Technology for Future-Ready Devices I2C/UART/SPI/ADC/PWM/SDMMC/GPIO
    Interface
    I2C/UART/SPI/ADC/PWM/SDMMC/GPIO

  • SPECIFICATION

OS Android
SOC MT8781, 2 x A76 2.2GHz + 6 x A55, 2.0GHz,6nm
GPU ARM@Mali-G57 MC2, 3D Graphics
OpenGL ES3.2/OpenCL 2.x/Vulkan1.0
ROM UMCP 6G+128G
Media Decode:2K 30fps/40Mbps, H.264/H.265/VP9
Encoded:2K 30fps/40Mbps, H.264/H.265
Display MIPI，4-Lane MIPI-DSI,up to 1200 x 2000@90fps or 1600 x 2560@60fps
LTE TDD/FDD，LTE Cat14，L+L DSDS
WCDMA WCDMA
GSM GSM
Connectivity WIFI 802.11a/b/g/n/ac
Bluetooth 5.2
GPS+Glonass+Beidou+Galileo
FM Receiver
USB USB2.0 OTG
Interface I2C/UART/SPI/ADC/PWM/SDMMC/GPIO
Input Power Li-Battery Supply, PD Charger, 15W
PCB Size: 41.5 x 48 x 1.0mm
Process:10-layers HDI-2 Immersion
Gold Package:LCC(202Pin,1.0mm)+LGA
Environment Operating temperature -20°C ~ 60°C
