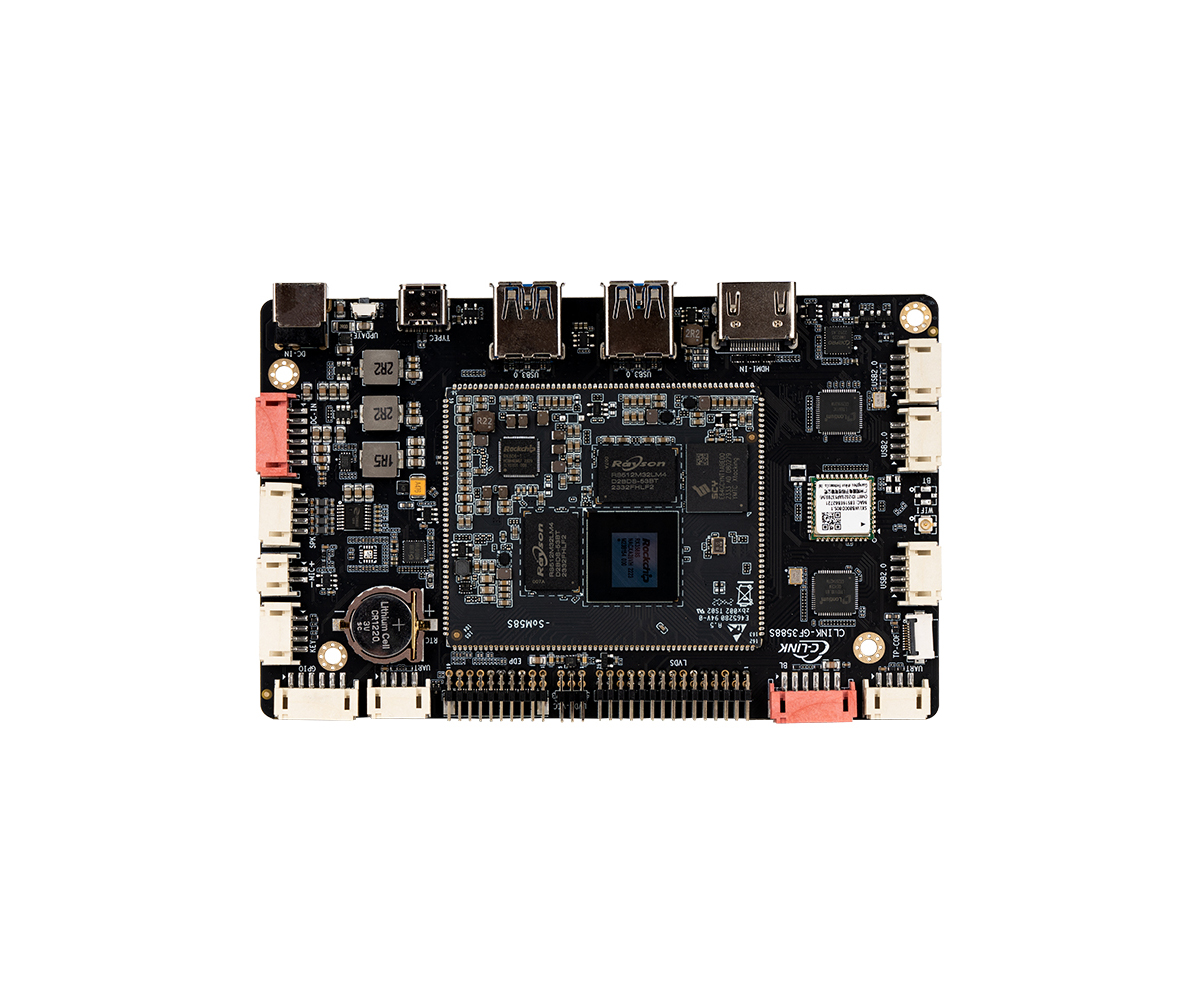

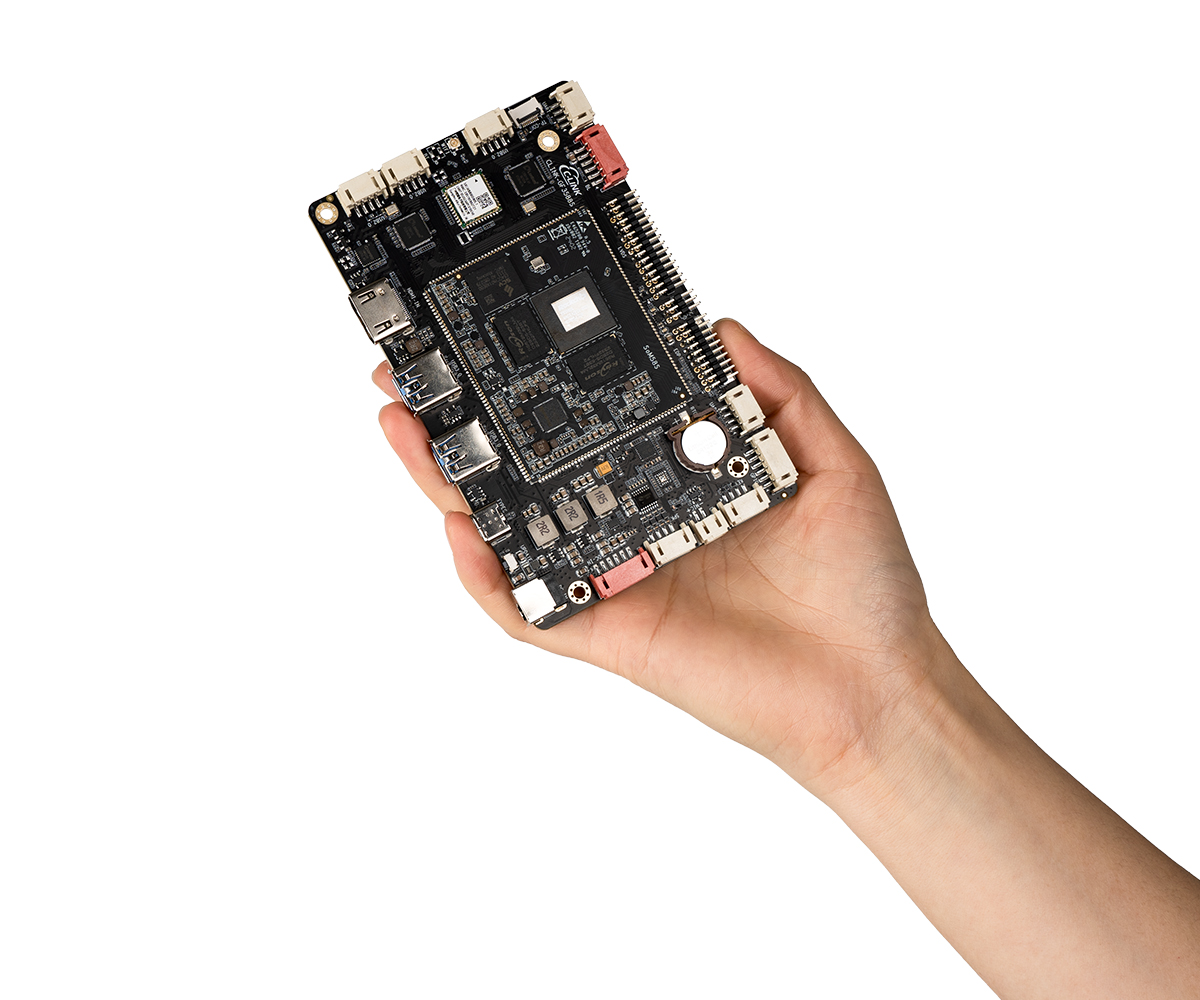

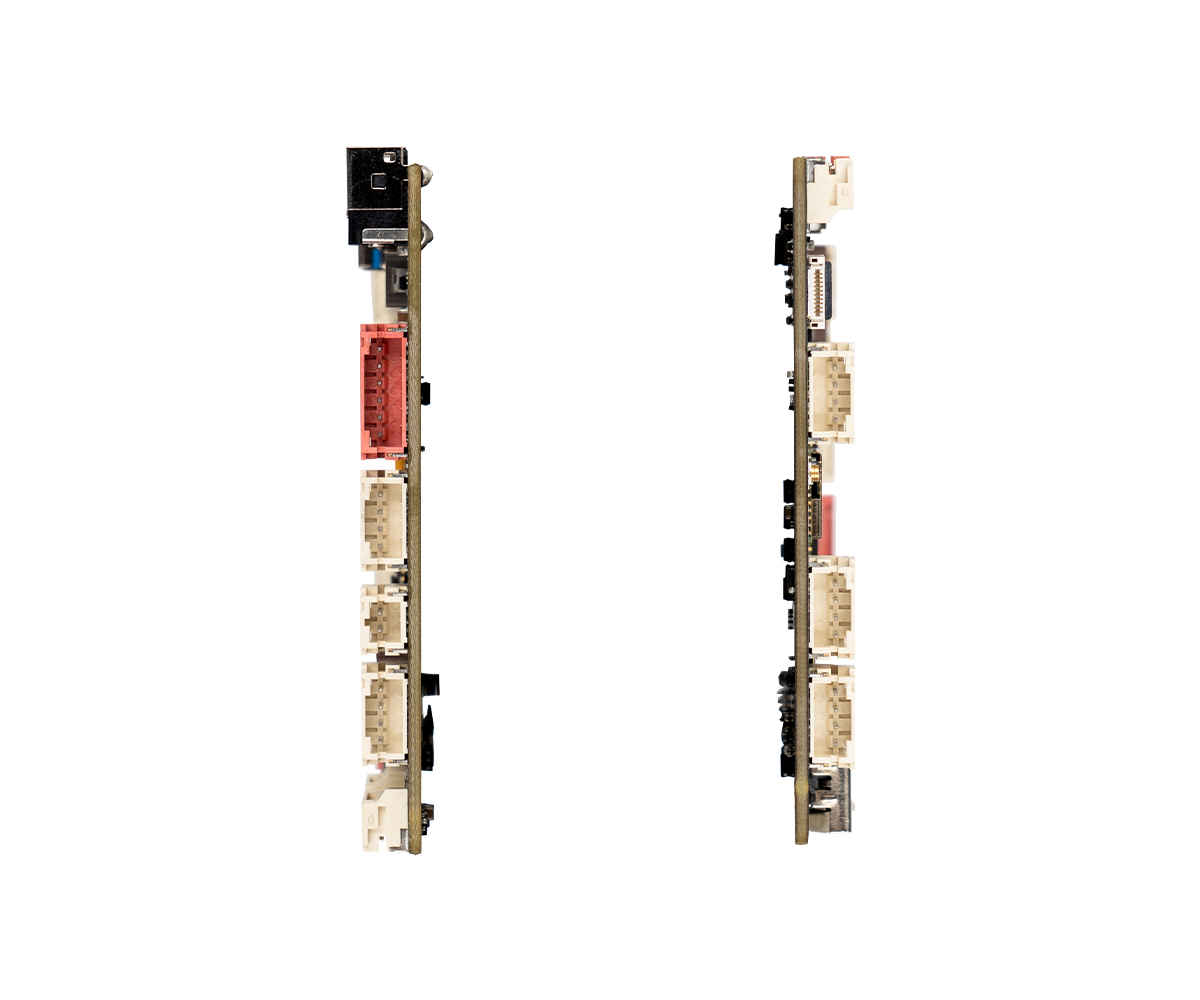

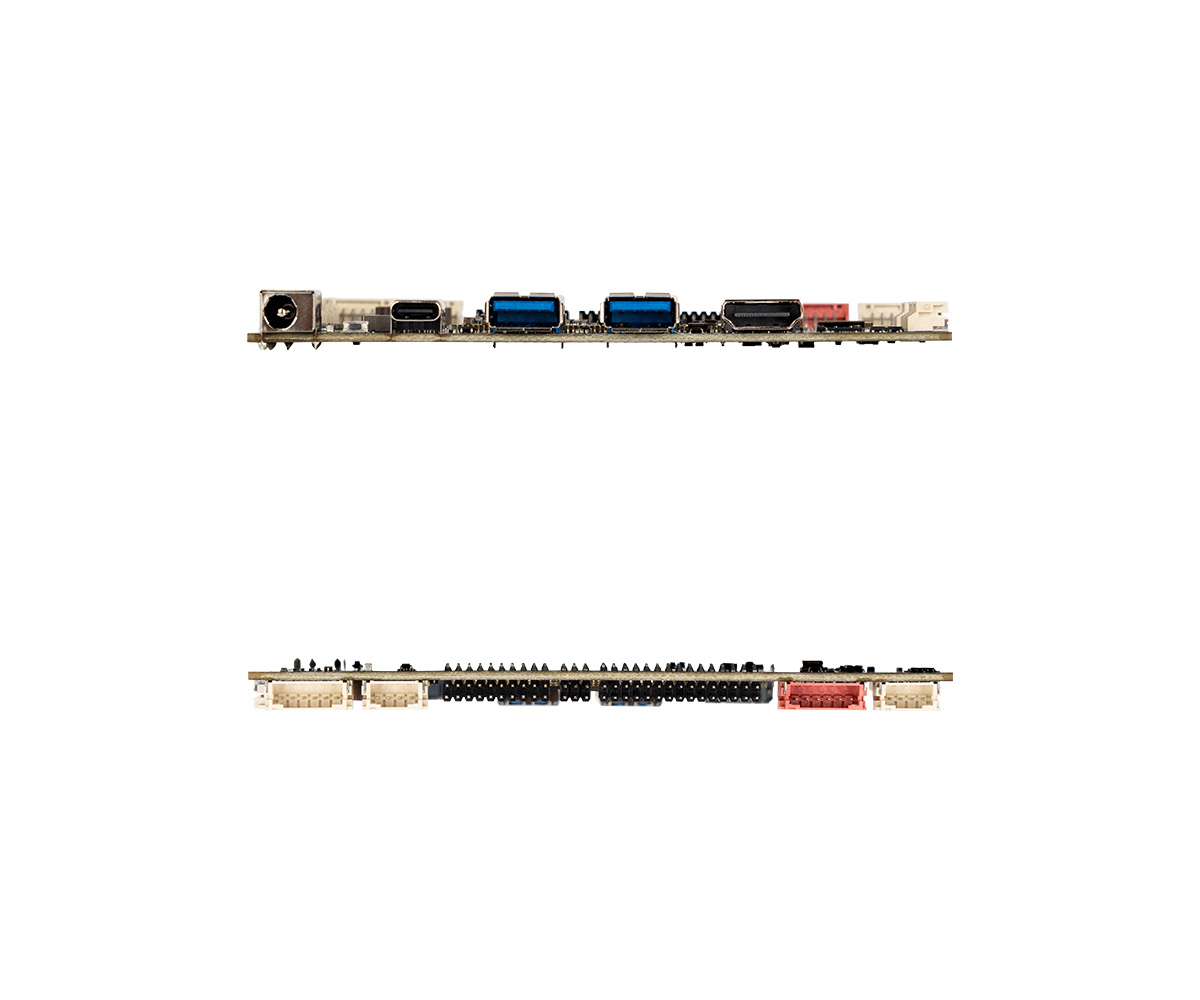

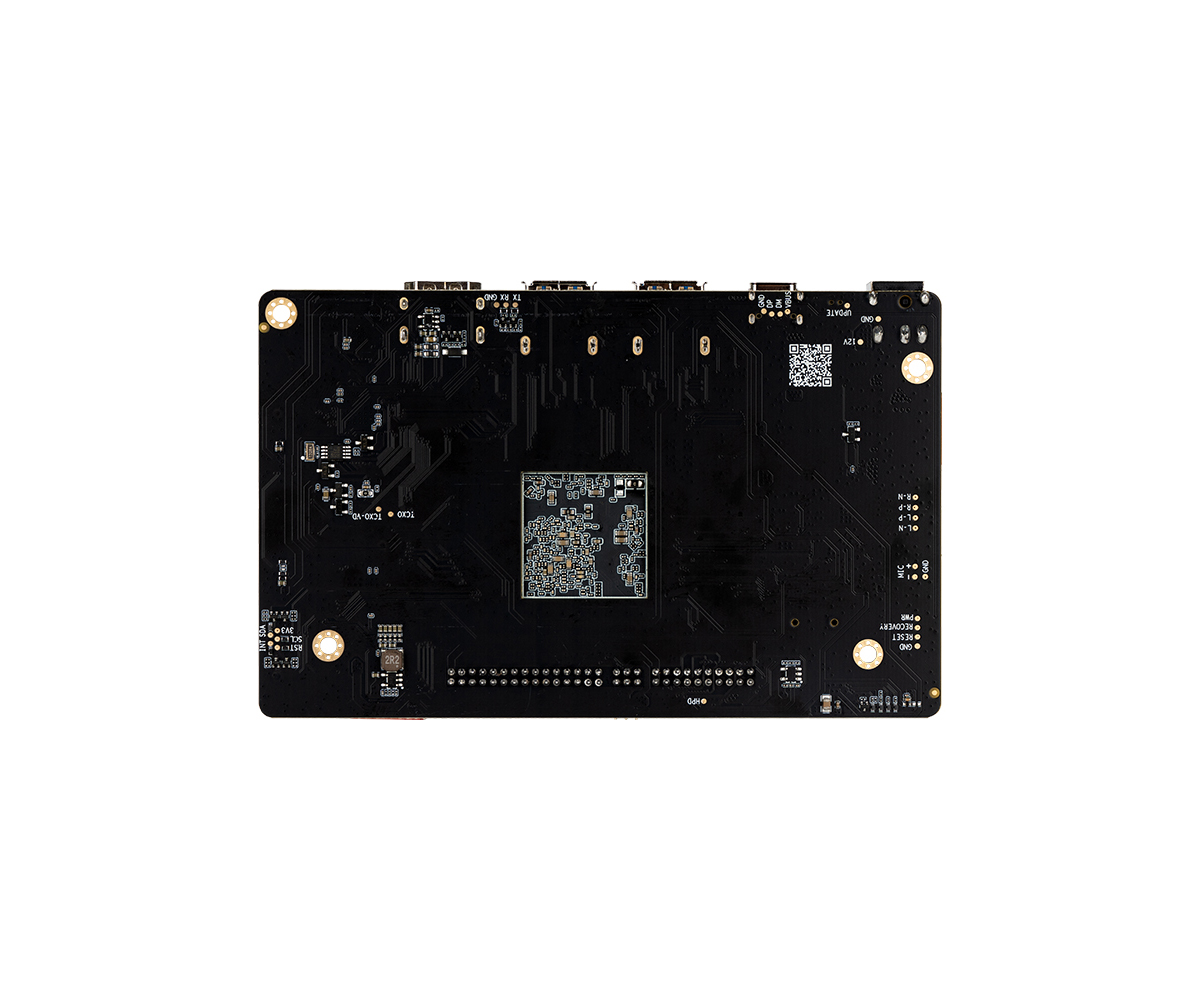

RK3588S SOM and Carrier Board: Innovating Display Solution
Home >> Solution >> SOM and Carrier Board

PRODUCT DETAIL

GF3588S
project-left
project-left
  • RK3588S SOM and Carrier Board: Innovating Display Solution LPDDR4 2G/4G/8G
    SOC
    LPDDR4 2G/4G/8G
  • RK3588S SOM and Carrier Board: Innovating Display Solution WiFi6/BT5.3,1T1R
    Connectivity
    WiFi6/BT5.3,1T1R
  • RK3588S SOM and Carrier Board: Innovating Display Solution UART x 2<br>GPIO TP-COF KEY
    Interface
    UART x 2
    GPIO TP-COF KEY

  • SPECIFICATION

OS Android
SOC RK3588S, 4 x A76 + 4 x A55, 8nm, 2.4GHz
GPU ARM Mali-G610 MP4 Quad-Core
OpenGL ES3.2/OpenCL 2.2/Vulkan1.1,450 GFLOPS
6.0TOPS NPU, Support INT4/INT8/INT16
RAM LPDDR4 2G/4G/8G
ROM EMMC5.1 64G/128G
Media Decode:
[email protected]/VP9/AVS2
[email protected] AVC/MVC
4K@60fpsAV1
1080P@60fps MPEG-2/-1/VC-1/VP8

Encoded:
8K@30fps encoding, support H.265/H.264
Up to 32 channels 1080P@30fps decoding and 16-channel 1080P@30fps encoding
Display EDP，4-lane EDP1.4, 4K@60fps，HDCP1.3
Dual-LVDS, 1080P@60fps
HDMI-IN，1080P@60fps
Ethernet NA
Connectivity WiFi6/BT5.3,1T1R
USB USB2.0-C x 1,with OTG USB3.0-A × 2
USB2.0-PH2.0 x 3（For USB-TP/USB-Camera）
Micro SD Card NA
Audio stereo speaker 10W x 2
Mic x 1
Interface UART x 2
GPIO TP-COF KEY
Input Power 12V Power Supply
PCB Size: 82 x 130x 1.6mm
Process:4-layers Immersion Gold Package:SoM +Carrier Board
Environment Operating temperature -20°C ~ 60°C
